FieldPro® Gothic - High Tunnel Greenhouse

See Pricing Below
Brand Name:
Poly-Tex
Availability:
Call 1800-852-3443 to order
Quantity:

Product Description



Increase your crop quality, yield, and profits with high tunnel field growing. High tunnels help you start crops sooner, extend your season, reduce pests, and modify the environment. With our 6’ sidewall option, the FieldPro Gothic gives you increased side wall and head room space for growing taller crops like fruit trees or hemp. The Field Pro is available in two roof styles, three standard widths and can be easily configured to meet your needs. Call today and start growing like a pro.


Save on water
Provides frost protection
Optional 4' or 6' Frame Spacing
20', 24' & 30' Widths Available
Fittings & Hardware Available for Your Lumber

Stronger Than Your Average Steel Tube
All our High Tunnels use Gatorshield® galvanized steel tubing that provides superior levels of corrosion protection in addition to its longevity


Pricing


FieldPro Gothic Frame only price (4ft Sidewall)

Five-piece frame sections, ground stakes, (3) purlins, (4) diagonal wind braces, peak bracing, ground stake driver, assembly hardware and a set up manual. Lumber not included.

Width
Length
4-Foot Spacing
6-Foot Spacing
20'
24'
$2,051
$1,604
20'
36'
$2,808
$2,135
20'
48'
$3,642
$2,742
20'
72'
$5,155
$3,803
20'
96'
$6,746
$4,938

24'
24'
$2,185
$1,701
24'
36'
$3,001
$2,269
24'
48'
$3,892
$2,915
24'
72'
$5,520
$4,053
24'
96'
$7,227
$5,266

30'
24'
$2,808
$2,144
30'
36'
$3,890
$2,892
30'
48'
$5,048
$3,715
30'
72'
$7,213
$5,209
30'
96'
$9,455
$6,779
FOB Castle Rock, MN.


FieldPro Gothic Frame only price (6ft Sidewall)

Five-piece frame sections, ground stakes, (3) purlins, (4) diagonal wind braces, peak bracing, ground stake driver, assembly hardware and a set up manual. Lumber not included.

Width
Length
4-Foot Spacing
6-Foot Spacing
20'
24'
$2,196
$1,704
20'
36'
$3,020
$2,280
20'
48'
$3,921
$2,932
20'
72'
$5,570
$4,082
20'
96'
$7,296
$5,308

24'
24'
$2,330
$1,801
24'
36'
$3,213
$2,414
24'
48'
$4,171
$3,105
24'
72'
$5,935
$4,332
24'
96'
$7,777
$5,636

30'
24'
$2,962
$2,250
30'
36'
$4,116
$3,046
30'
48'
$5,347
$3,917
30'
72'
$7,656
$5,508
30'
96'
$10,041
$7,174
FOB Castle Rock, MN.




FieldPro Gothic Standard package price
(4ft Sidewall)

Everything in the frame only price as well as upper and baseboard lumber U-clamps, end-wall lumber mount fittings and hardware, Wiggle Wire™ poly fastening system, single- layer clear poly roof and ends, (2) full-length manual roll-up sidewall vents. Lumber not included

Width
Length
4-Foot Spacing
6-Foot Spacing
20'
24'
$3,986
$3,512
20'
36'
$5,118
$4,404
20'
48'
$6,308
$5,353
20'
72'
$8,491
$7,057
20'
96'
$10,785
$8,867

24'
24'
$4,210
$3,699
24'
36'
$5,382
$4,609
24'
48'
$6,664
$5,632
24'
72'
$8,977
$7,428
24'
96'
$11,376
$9,305

30'
24'
$4,888
$4,201
30'
36'
$6,335
$5,302
30'
48'
$7,894
$6,514
30'
72'
$10,762
$8,688
30'
96'
$13,715
$10,945
FOB Castle Rock, MN.


FieldPro Gothic Standard package price
(6ft Sidewall)

Everything in the frame only price as well as upper and baseboard lumber U-clamps, end-wall lumber mount fittings and hardware, Wiggle Wire™ poly fastening system, single- layer clear poly roof and ends, (2) full-length manual roll-up sidewall vents. Lumber not included

Width
Length
4-Foot Spacing
6-Foot Spacing
20'
24'
$4,184
$3,665
20'
36'
$5,396
$4,615
20'
48'
$6,666
$5,622
20'
72'
$9,012
$7,442
20'
96'
$11,467
$9,369

24'
24'
$4,411
$3,855
24'
36'
$5,662
$4,822
24'
48'
$7,025
$5,904
24'
72'
$9,500
$7,815
24'
96'
$12,060
$9,809

30'
24'
$5,102
$4,367
30'
36'
$6,634
$5,529
30'
48'
$8,278
$6,801
30'
72'
$11,318
$9,100
30'
96'
$14,440
$11,479
FOB Castle Rock, MN.

Options

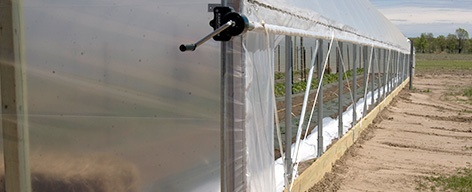

4' or 6' Sidewalls





Things are looking up with our new 6' sidewall option on our popular
FieldPro® high tunnel models

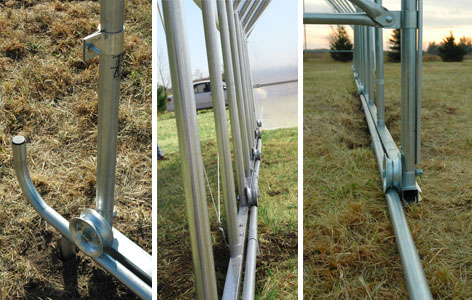

Move & Grow Rolling or Skid Moving Systems





Available with rolling or skid moving systems, our FieldPro high tunnels  give you the freedom to easily move and grow! Rotating crops, protecting delicate plants and jump-starting or extending your growing season is now more simple and versatile than ever before. Contact us today for more details.






FieldPro® Roll-up Door Kit




FieldPro roll-up door kit include:

galvanized steel jamb & header, clear 3-ply reinforced poly door,
drive tube, 60" roll up crank and hardware.

Part # Description
Price
HT3000 Door Kit 20' Gothic (8' x 8')
 $400.00
HT3001 Door Kit 20' Gable (8' x 8')
 $400.00
HT3002 Door Kit 24' Gothic (8' x 8')
 $425.00
HT3003 Door Kit 24' Gable (8' x 8')
 $425.00
HT3004 Door Kit 30' Gothic (8' x 10')
 $525.00
HT3005 Door Kit 30' Gable (8' x 10')
 $525.00
All prices FOB Castle Rock, MN.


Roof & End Wall Polyethylene





Our clear 6 mil roof and end wall polyethylene coverings are UV stabilized, and come with a four-year limited warranty.

Click here for more information


Wiggle Wire





Used on thousands of greenhouses, Wiggle Wire has proven to be
a low-cost, effective system to attach polyethylene or shade material
to greenhouses. Quick and easy to use, the Wiggle Wire attachment
system requires no tools.

Click here for more information


Inflation Kit


Our pre-assembled roof inflation kit creates an insulating dead air space between a double layer poly roof for greater energy efficiency and visual appeal. Gives you that nice tight, even poly look. Includes blower, heavy-duty mounting bracket, flex tube and air-transfer gaskets.

Click here for more information

Shade Cloth





Various percentages of knitted shade cloth are available from 30-90% and up. Includes edge taped hems and grommets. Custom sizes are available as well as stock sizes for our most popular Garden Mart sizes.




Specifications

Width
20', 24' & 30'

Cover

Clear or white 6 mil. UVI treated polyethylene
Length
Starting at 16’ with increments of 4’ or 6’

End wall cover

Clear or white 6 mil. UVI treated polyethylene

Height at apex
12’ (20’ & 24’ models), 12’-4” (30’ models)

Frame

1.66” O.D. 14ga. galvanized steel tube (20’ & 24’ models)
2” O.D. 14ga. galvanized steel tube (30’ models)

Frame spacing
4' or 6'

Purlin

(1) 1.315” O.D. 17ga. galvanized steel tube ridge purlins
(2) 1.163” O.D. 17ga. galvanized steel tube side purlins


Product Reviews

Write Review

This product hasn't received any reviews yet. Be the first to review this product!

Find Similar Products by Category

Warranty Information

Support

You can download the setup manual below. You will need the free Adobe Acrobat Reader to view these files.

FieldPro Gothic 20' (3.7 MB)

FieldPro Gothic 24' (3.7 MB)

FieldPro Gothic 30' (3.6 MB)

FieldPro Gothic 20'-24' with skids (9.5 MB)

Field Pro Move & Grow 30' (8 MB)

FieldPro Gothic 30' with skids (8 MB)

If you need additional technical support or have a question not answered here, we can be reached 8 AM to 4:30 PM central time,
Monday through Friday at:

Phone: 800-852-3443 (toll-free US and Canada) or 651-463-7009

FAX: 651-463-2479

E-mail: support@poly-tex.com
